Narrow Barrel Assembly Inspection Adapter (FBPP-BAP3)
The FBPP-BAP3 Barrel Assembly is used in conjunction with the ARINC 801 Inspection Guides to inspect the ARINC 801 Termini installed in either rectangular or circular ARINC 801 connectors.
Aviation Inspection Tools
Showing all 12 resultsSorted by popularity
-
-
Standard Barrel Assembly Inspection Adapter (FBPP-BAP1)
The FBPP-BAP1 Barrel Assembly is used in conjunction with the 0700-8625 Video Inspection Probe. This barrel assembly is required when using any of the inspection tips.
-
Quadrax (socket) Inspection Tip (0700-8673)
The following tips to be used with our FBP-SD4i, 0700-8640 Backplane Video Inspection Kit, 0700-8625 Video Probe, 0741-8010 Aviation Fiber Optic Inspection and Cleaning Kit and 0741-8015 Fiber Optic Inspection and Cleaning Kit:
-
Quadrax (socket) Inspection Tip (0700-8672)
The Quadrax Socket inspection tip is used to inspect ARINC 801 Termini installed within a size 8 Quadrax Socket connector.
-

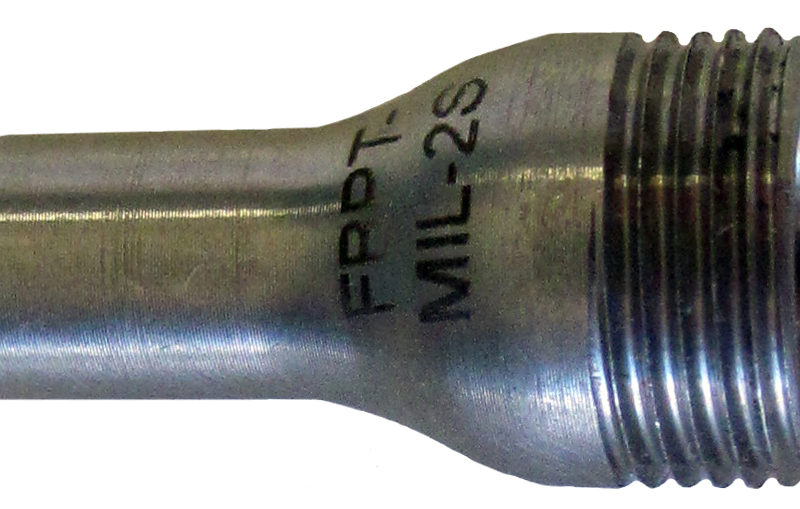

M29504/05, 1.6mm (socket) Inspection Tip (0700-8660)
The M29504/05 Socket Termini inspection tip is used to inspect M29504/05 Socket Termini installed within a D38999 connector.
-

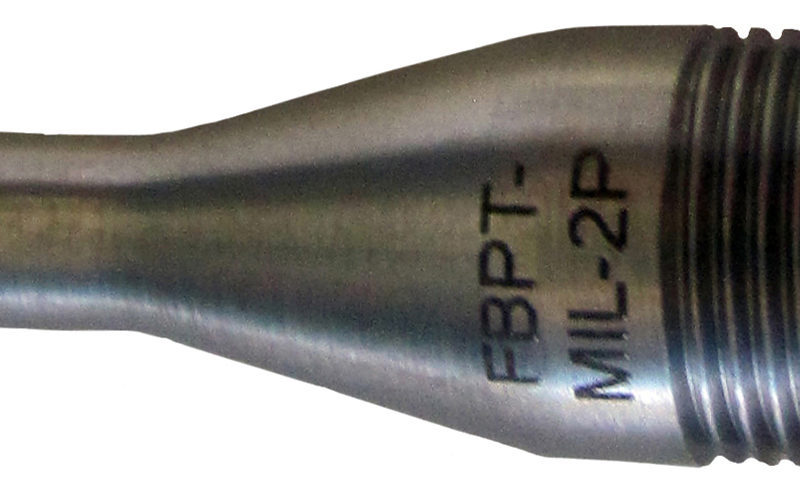

M29504/04, 1.6mm (pin) Inspection Tip(0700-8659)
The M29504/04 Pin Termini inspection tip is used to inspect M29504/04 Pin Termini installed within a D38999 connector.
-
Universal 2.50mm Patch Cord Inspection Tip (0700-8657)
The 2.50mm inspection tip is used to inspect ST, SC, FC connectors on cable assemblies and EN-4531 (Appendix C) Termini not installed within rectangular or circular D38999 style connectors.
-
Universal 1.25mm Patch Cord Inspection Tip (0700-8656)
The 1.25mm inspection tip is used to inspect LC connectors on cable assemblies and ARINC 801 Termini not installed within an ARINC 801 connector.
-

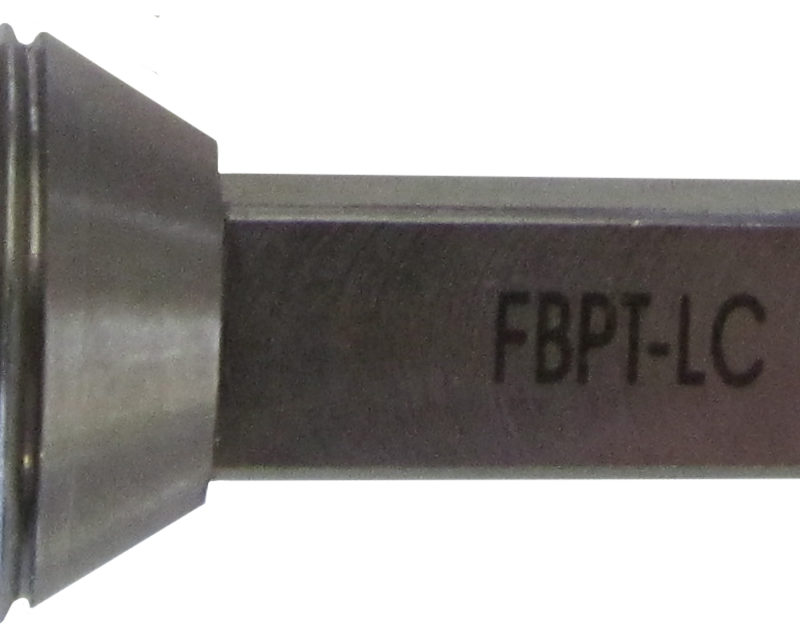

LC Bulkhead Inspection Tip (0700-8655)
The LC Bulkhead inspection tip is used to inspect LC connectors installed within a LC coupling adapter.
-

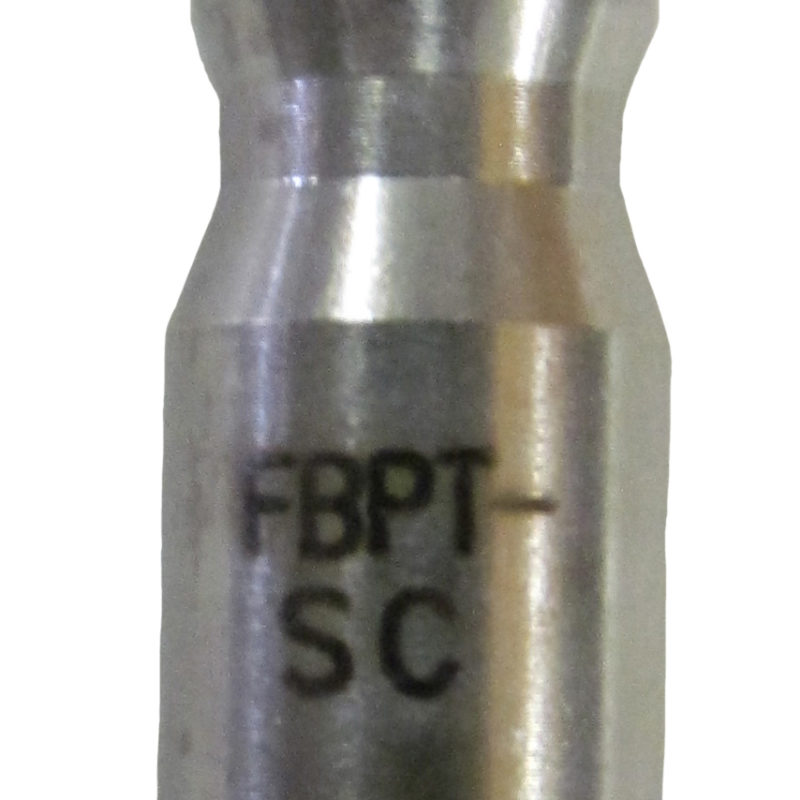

SC Bulkhead Inspection Tip (0700-8647)
The SC Bulkhead Tip is used to inspect SC connectors installed within a SC coupling adapter.
-

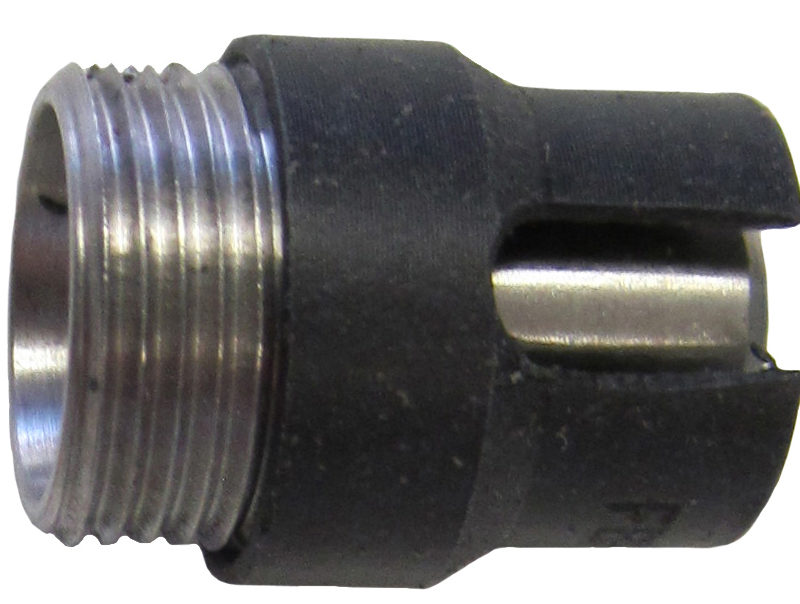

ST Bulkhead Inspection Tip (0700-8646)
The ST Bulkhead Tip is used to inspect ST connectors installed within a ST coupling adapter.
-
Video Display w/Probe(FBP-SD4i)
Key features are:
- 3.5” touch screen display (FBP-HD4i)
- 200/400x Video Probe (FBP-P5000i)
- Store all fiber inspection and test results on board
- Easily generate fiber certification reports
- Automated pass/fail analysis for fiber inspection and test
- Tips include: Universal 1.25 and 2.5mm, SC, LC
